Move the Contents from One or More Cells

You can move the content from one cell and place that content into a cell elsewhere on a Data Set Row or in another Data Set Row.

Moving the content of a cell into an already populated cell will overwrite the present content of that cell with the selected content.

To move the content from one cell or complete row:

  1. Select the required cells (see Keyboard Shortcuts).

    Example:

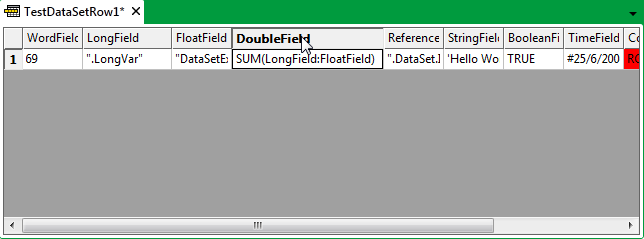

    To select a complete field, select the field heading.

    or:

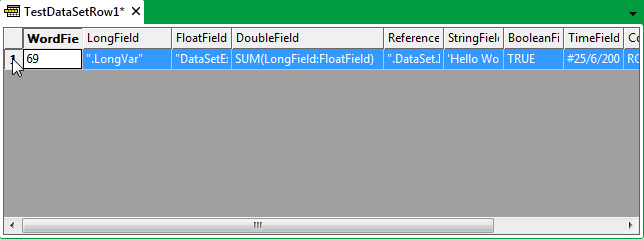

    To select a complete row, select the row number. This allows you to copy all of the expressions from one Data Set Row to another.

  2. Perform one of the following:
    • Press both the CTRL key and the X key.

      or:

    • Right-click on the cell to display a context sensitive menu and select the Cut option.
      The content of the cells is removed from the Grid and placed in the clipboard.
  3. Move to the new location for the content of the top-left expression that is presently stored in the clipboard.
  4. Perform one of the following:
    • Press both the CTRL key and the V key.

      or:

    • Right-click on the cell to display a context sensitive menu and select the Paste option.
      The content of the clipboard is pasted into the Data Set Row cells, starting at the new location.
