AGA-11 Properties
The properties described in this topic are supported by Realflo version 6.95 onwards.

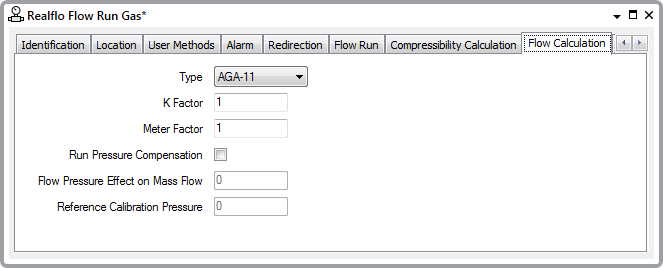

When the Type of Flow Calculation is set to AGA-11, the following properties are displayed on the Flow Run's Flow Calculation tab.
You can configure these properties directly in ClearSCADA, or read the configuration into the ClearSCADA database (see Configure or Read the Flow Run Configuration).
- K Factor—This factor is used to convert pulse count to volume. The K factor is entered when the Meter Input Type selected on the Meter Input tab is Mass (Pulse). The K factor has a value greater than zero. The default value is 1.
- Meter Factor—This factor is used as an adjustment factor for meter proving. The meter factor has a value greater than zero. The default value is 1.
- Run Pressure Compensation—When selected, this check box specifies that the flow calculation performs pressure compensation.
- Flow Pressure Effect on Mass Flow—Only applicable when the Run Pressure Compensation check box is selected (see above).
This field indicates the effect of flowing pressure on the mass flow measurement.
- Reference Calibration Pressure—Only applicable when the Run Pressure Compensation check box is selected (see above).
This field indicates the pressure at which the Coriolis meter flow tube was calibrated. When used, the property must have a value greater than zero.
Further Information
For more detailed information on these properties, see the documentation provided with the Realflo application.
