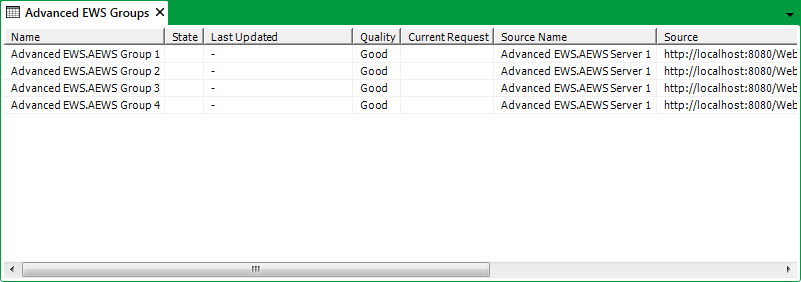

The Group Queries list provides a summary of the status of all Advanced EWS Groups in the database.
As with other Lists, the Advanced EWS Group List consists of rows and columns. Each row represents an individual group, and each column contains status information about the group.
The Group Queries List contains these columns:
- Name—The full name of each group, including its path within the ClearSCADA database.
- State—This indicates the state of the group connection with a server, if more than one server is associated with the group then the state of the group with each server is shown.
- Last Updated—The time and date that a group’s activity status last changed. This entry is identical to the Last Updated attribute on the group’s Status display.
- Quality—This indicates the reliability of the value that last caused a group to change state
- Current Request—This indicates whether the group is currently processing a request.
-
Source Name—This attribute displays the name and location of the group's data source in the ClearSCADA database, see Source Name.
-
Source—This indicates the URL address of the server associated with group.
- Type—This indicates the database item type.
- Memory Usage—The approximate amount of system memory used by the server, specified in bytes.
- Alarm View—The currently configured Alarm view for each group item.
