DNP3 SCADAPack Driver Guide - Map to Point Data on a SCADAPack ER I/O Card (Points Used on DNP3 SCADAPack E Outstations)

You are here:

Map to Point Data on a SCADAPack ER I/O Card

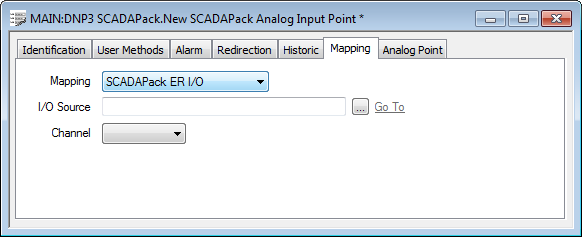

When Mapping to point data on a SCADAPack ER I/O card, use these fields to specify the physical location of the point on that card:

I/O Source—Use to Specify the I/O Module, I/O Card, or Remote Outstation on Which the Point is Located.
Channel—Use to Specify the Location of the Point on the I/O Module, I/O Card, or Remote Outstation.
