Device Configuration IEC 60870-5-104 Tab

The Form of a SCADAPack x70 Device Configuration item includes an IEC 60870-5-104 tab that enables you to define the IEC 60870-5-104 settings of the SCADAPack x70 Device Configuration item.

You use the fields within the following sections on the IEC 60870-5-104 tab to configure the controlling station settings:

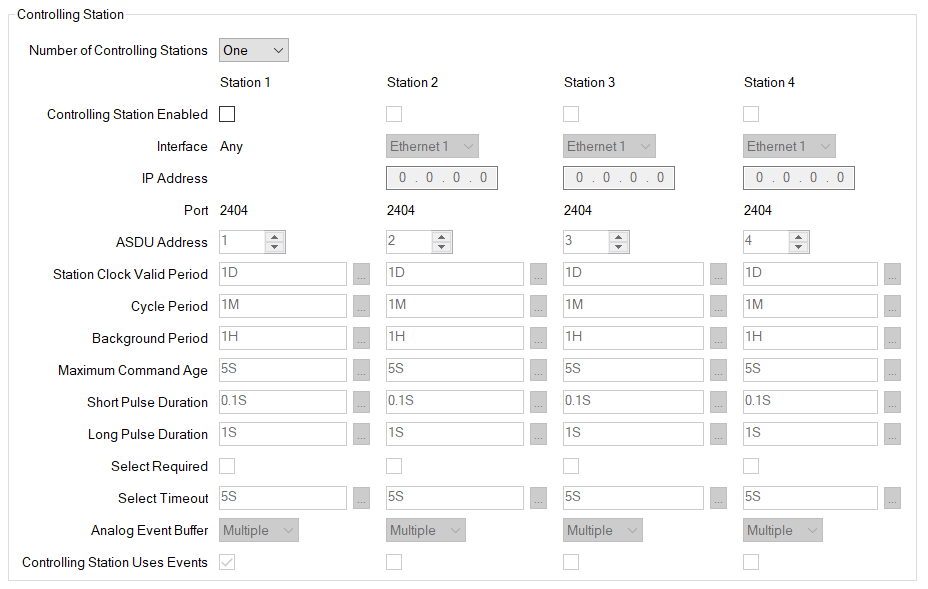

• Controlling Station—Use the fields within the Controlling Station section to define how the SCADAPack x70 device's IEC 60870-5-104 Controlled Station reports data to its controlling station(s).

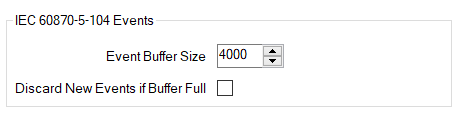

• IEC 60870-5-104 Events—Use the fields within the IEC 60870-5-104 Events section to define the event buffer settings.

For information about the IEC 60870-5-104 properties in these sections, please refer to the documentation provided with the SCADAPack x70 devices.
