Note Outstation Request Pending Download Configuration Required

Priority of Outstation Background Colors

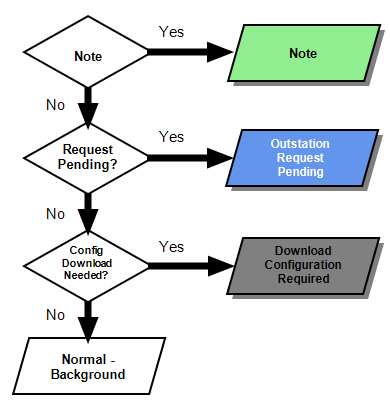

This chart indicates which advanced driver outstation status takes precedence over another, and therefore which core system background color is assigned to an outstation at any particular time (unless a driver-specific state and associated color takes precedence):

Further Information

List of Core System Colors.
