SCADAPack x70 Modbus Point Scanners List
The Modbus Point Scanners List is specific to the SCADAPack x70 driver - it is only available on systems on which that driver is installed. Like other Queries Lists, you can display the List from the Queries Bar.
The Modbus Point Scanners List provides a summary of the status of the Modbus Point Scanner to which your User Account and the client provide access. When accessed from a SCADAPack x70 Device Configuration item or a SCADAPack x70 Modbus Server Device, the entries in the list are filtered to only show those SCADAPack x70 Modbus Point Scanners that are associated with that particular SCADAPack x70 Device Configuration item or SCADAPack x70 Modbus Server Device.

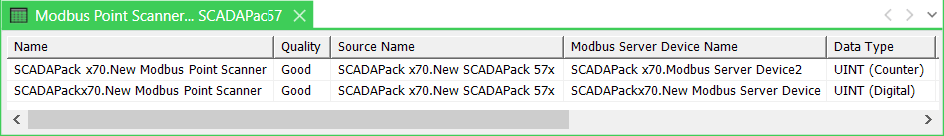

As with other Lists, the Modbus Point Scanners List consists of rows and columns. Each row represents an individual Modbus Point Scanner and each column contains status information about that particular Modbus Point Scanner.
The Modbus Point Scanners List contains these columns:
-
Name—The full name of the database item, including its path in the Geo SCADA Expert database.
-
Quality—The quality of the item's data. The entry is identical to that of the Quality attribute on the item's Status display.
-
Source Name—The name of the SCADAPack x70 Device that is the source of data for that Modbus Point Scanner.
-
Modbus Server Device Name—The name of the Modbus Server Device containing the registers to be scanned.
-
Data Type—The Modbus Data Type contained in the Modbus register.
-
Register Start Address—The first address in the block of Modbus registers that is to be scanned (see Configure the Modbus Point Scanner Configuration).
-
Register Quantity—The total number of Modbus registers to be scanned and mapped.
-
Type—The type of database item. This column displays the entry 'SCADAPack x70 Modbus Point Scanner'.
-
Memory Usage—The approximate amount of system memory that is occupied by the item, specified in bytes.
As with other Lists, you can right-click on an entry in the List to display a context-sensitive menu. From this menu, you can select options to display further information about a Modbus Point Scanners, or perform various actions. Modbus Point Scanners support actions that are common to many types of database item (see Object Menu Options).
