Specify Whether to Update the Point Value Immediately Following a Control

This section applies to Digital Output Points and Analog Output Points only.

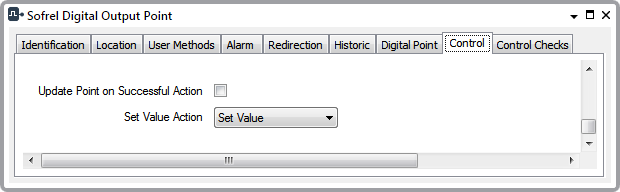

Select the Update point on successful action check box on the Control tab for the point value to be reported immediately following a successful control action. This applies to Control, Control and Lock, Control and Force and Unlock actions (see Actions Associated with Sofrel Points).
