DNP3 Routing

You can configure a SCADAPack E outstation to route DNP3 frames between a SCADA Master (Geo SCADA Expert) and other DNP3 devices.

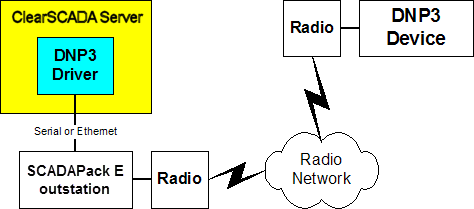

A typical scenario would be to use a SCADAPack E outstation to route DNP3 frames between Geo SCADA Expert and remote outstations via a radio network, as illustrated below.



Further Information

Route DNP3 Frames Using a DNP Route Table.

SCADAPack E Data Concentrators and Remote Outstations.
