Configure a Test SCADAPack 50 Digital Point

Perform this procedure after you Configure a Test SCADAPack 50 Channel.



Follow this procedure to configure a Geo SCADA Expert SCADAPack 50 digital point to represent the device digital point (V1) that you configured earlier in Kervisu:

1. In the Database Bar, select the SCADAPack 50 Test.Digital Point database item.

   The SCADAPack 50 Test.Digital Point Form is displayed.

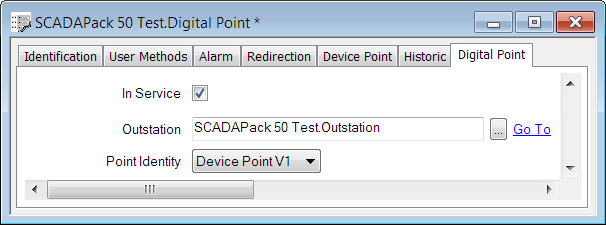

2. Set the following properties (leave the other properties at their default settings):
   • In Service—Select the check box to activate the point.
   • Outstation—Use the browse button to display a Reference browse window, then select SCADAPack 50 Test.Outstation from the window.
   • Point Identity—Choose the Device Point V1 combo box option (because you configured the V1 point in Kervisu).



3. Select the Device Point tab.

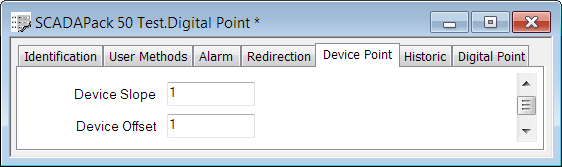

4. Set the following properties (leave the other properties at their default settings):
   • Device Slope—Enter 1. This setting matches the setting you made in Kervisu.
   • Device Offset—Enter 1. This setting matches the setting you made in Kervisu.



5. Save the property settings (see Saving Configuration Changes in the Geo SCADA Expert Guide to Core Configuration) and close the SCADAPack 50 Test.Digital Point window.



Proceed to Configure a Test SCADAPack 50 Outstation and Outstation Set.



Further Information

For information about how terminology varies between Geo SCADA Expert and Kervisu, Differences between Kervisu and Geo SCADA Expert Terminology.
