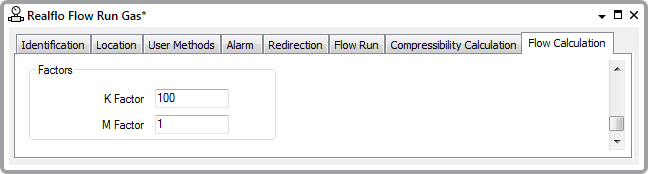

The fields within this section of the Flow Calculation tab display properties associated with the AGA-7 pulse calculation parameters.
You can configure these properties directly in Geo SCADA Expert, or read the configuration into the Geo SCADA Expert database (see Configure or Read the Flow Run Configuration).
- K Factor—Enter the factor that is used to convert pulse count to volume of the turbine meter. Valid values are 0.001 to 1000000. The default value is 100.
- M Factor—Enter the factor that is the adjustment to the number of pulses per unit volume for the turbine meter compared to an ideal meter. Valid values are 0.001 to 1000. The default value is 1.
Further Information
For more detailed information on these properties, see the documentation provided with the Realflo application.
