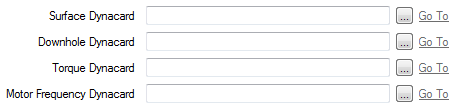

Use these fields on the SE RPC tab to specify the Geo SCADA Expert Dynacard Stores that store the rod pump readings:
- Surface Dynacard—Specify the Dynacard Store that is used to store the pump’s surface readings.
- Downhole Dynacard—Specify the Dynacard Store that is used to store the pump’s downhole readings.
- Torque Dynacard—Specify the Dynacard Store that is used to store the pump’s torque readings.
- Motor Frequency Dynacard—Specify the Dynacard Store that is used to store the pump’s motor frequency readings.
With each of the above fields, select the browse button to display a Reference browse window. Select the required Dynacard Store from the window.
Further Information
Dynacard Stores in the Geo SCADA Expert Guide to Advanced Drivers.
