Configure the General TBox Analog Point Properties

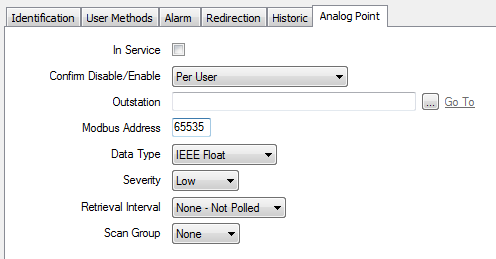

Use the fields at the top of the Analog Point tab on the TBox Analog Point Form to Configure Common Point Properties. Fields that are specific to TBox Analog points are explained below.

Data Type: Use this combo box to specify the format of the raw data. Select the option that matches the configuration of the tag in the TBox RTU.
