SCADAPack x70 Devices List
The Devices List is specific to the SCADAPack x70 driver - it is only available on systems on which that driver is installed. Like other Queries Lists, you can display the List from the Queries Bar.

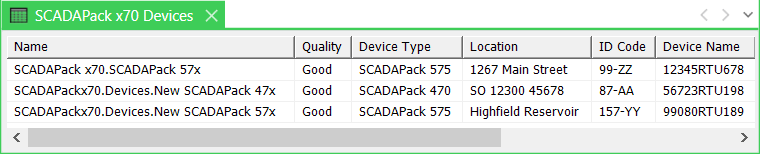

The Devices List provides a summary of the status of the SCADAPack x70 Device Configuration items to which your User Account and the client provide access. When accessed from a SCADAPack x70 Firmware Image item, the entries in the list are filtered to only show those SCADAPack x70 Device Configuration items that are associated with that particular SCADAPack x70 Firmware Image item.
As with other Lists, the Devices List consists of rows and columns. Each row represents an individual SCADAPack x70 Device Configuration item and each column contains status information about that particular SCADAPack x70 Device Configuration item.
The Devices List contains these columns:
-
Name—The full name of the database item, including its path in the Geo SCADA Expert database.
-
Quality—The quality of the item's data. The entry is identical to that of the Quality attribute on the item's Status display.
-
Device Type—The type of SCADAPack x70 device to which the configuration relates (see Selecting a Device).
-
Location—The physical location where the SCADAPack x70 device is installed (see Defining Identification Strings).
-
ID Code—A unique identifier for the SCADAPack x70 device (see Defining Identification Strings).
-
Device Name—A name for the SCADAPack x70 device (see Defining Identification Strings).
-
Type—The type of database item. This column displays the entry 'SCADAPack x70 Devices SCADAPack 57x' or 'SCADAPack x70 Devices SCADAPack 47x'.
-
Memory Usage—The approximate amount of system memory that is occupied by the item, specified in bytes.
As with other Lists, you can right-click on an entry in the List to display a context-sensitive menu. From this menu, you can select options to display further information about a SCADAPack x70 Device Configuration item, or perform various actions. For more information about the actions that SCADAPack x70 Device Configuration items support, see Actions Associated with SCADAPack x70 Device Configuration Items.
