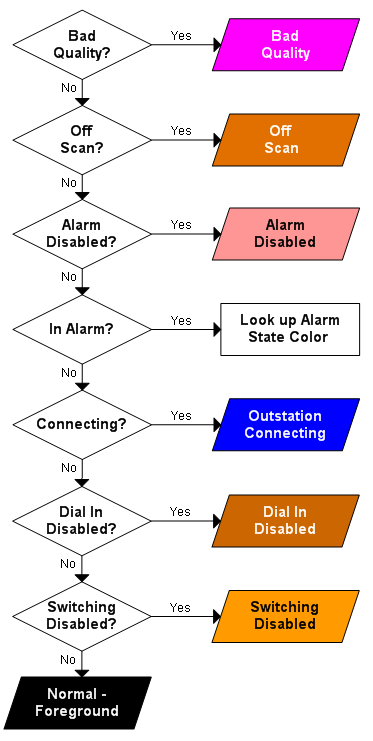

This chart indicates which DNP3 SCADAPack E outstation status takes precedence over another, and therefore which system foreground color is assigned to a DNP3 SCADAPack E outstation at any particular time:
As such, if the ability to place SCADAPack E outstations ‘Off Scan’ is enabled on a system on which a SCADAPack E outstation:
- Has valid configuration
- Is In Service
- Has been taken ‘Off Scan’ using the Off Scan pick action.
The outstation’s foreground color will be orange-brown to indicate that the outstation is ‘Off Scan’.
Further Information
List of Core System Colors in the Geo SCADA Expert Guide to Core Configuration.
