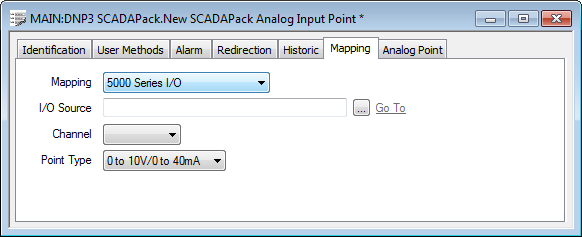

When Mapping to point data on a 5000 Series I/O card, use these fields to specify the physical location of the point on that card:
- I/O Source—Use to Specify the I/O Module, I/O Card, or Remote Outstation on Which the Point is Located.
- Channel—Use to Specify the Location of the Point on the I/O Module, I/O Card, or Remote Outstation.
- Point Type—Applies to Analog Input points only. Use this combo box to specify the type of data that the point is used to monitor.
