AGA-8 Relative Density and Heating Value Properties

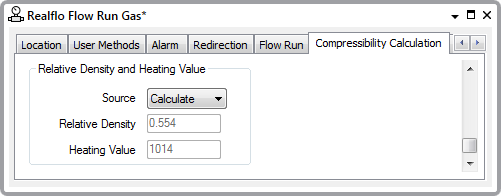

The Relative Density and Heating Value can be calculated from the AGA-8 calculation or determined in a laboratory. The fields within this section of the Compressibility Calculation tab allow you to select how the relative density and heating value are calculated.

You can configure these properties directly in Geo SCADA Expert, or read the configuration into the Geo SCADA Expert database (see Configure or Read the Flow Run Configuration).

• Source—Select one of the following:
  • Calculate—The values are calculated by AGA-8. This is the real relative density of the gas and the heating value is calculated for dry gas.
  • Laboratory—This allows you to enter fixed values for the relative density and the heating value.
• Relative Density—Set the real relative density of the gas if the Source is set to Laboratory. Valid values are 0.07 to 1.52. The default value is 0.554.
• Heating Value—Set the heating value of the dry gas if the Source is set to Laboratory. The units and valid range for this property varies, depending on the Units specified for the Flow Run in the Contract section of the Flow Run tab.
  • If the Units are US1 - US8, PEMEX, IP, or IP2 - IP5, the valid range is 0 to 1800 BTU/ ft³.
  • If the Units are Metric 1 - Metric 4, the valid range is 0 to 67.0661 MJ/m³.
  • If the Units are SI, the valid range is 0 to 6.70661e+07 J/m³.

Further Information

For more detailed information on these properties, see the documentation provided with the Realflo application.
