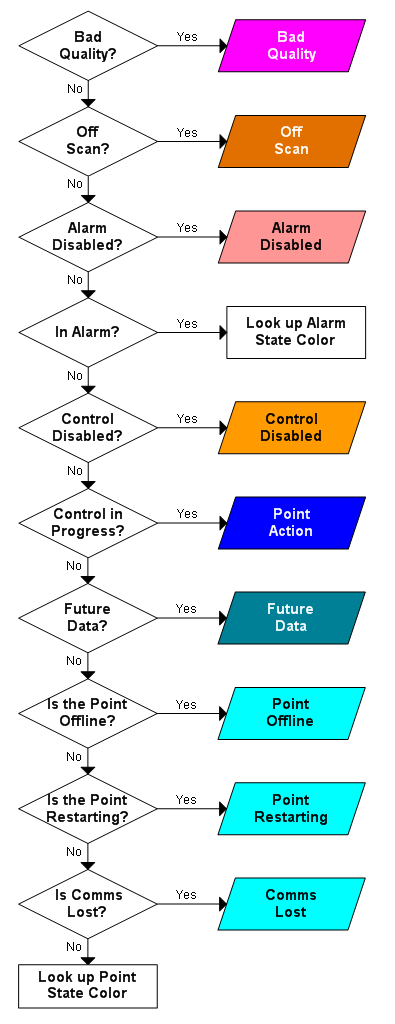

This chart indicates which DNP3 SCADAPack point status takes precedence over another, and therefore which system foreground color is assigned to a DNP3 SCADAPack point at any particular time:
Further Information
‘Off Scan’ system color: see Off Scan.
‘Point Offline’, ‘Point Restarting’, and ‘Comms Lost’ system colors: see Priority of DNP3 Point Foreground Colors in the Geo SCADA Expert Guide to the DNP3 Driver.
Other foreground colors included in the chart: see List of Core System Colors in the Geo SCADA Expert Guide to Core Configuration.
