Configure the Execution Settings for a Calculation Point

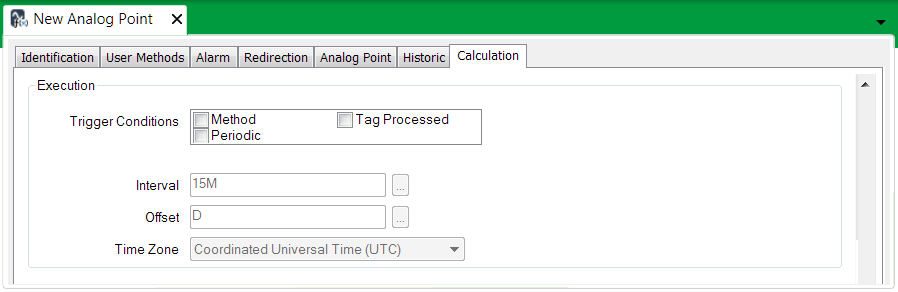

Use the fields within the Execution section of the Calculation tab to specify the specific triggers that will cause ClearSCADA to execute the calculation expression.

• Trigger Conditions—Select one or more of the following check boxes:
  • Method—Select this check box if you want ClearSCADA to allow the Execute method to be called. For example, when an operator uses the Execute pick action (see Execute)
  • Periodic—Select this check box if you want ClearSCADA to execute the expression periodically. Use the Interval, Offset and Time Zone fields to specify the period.
  • Tag Processed—Select this check box to execute the expression when any of the following occurs to a database item referenced by a tag in the expression:
    • Points—ClearSCADA updates a point (current and logged point updates only). This includes when an operator 'hand controls' an internal point, or when an operator applies or releases an override.
    • Accumulators—ClearSCADA updates or resets an accumulator, or an operator sets, initializes or resets an accumulator.
    • Variables—The value of a variable is set - or for array variables, an element of the array is set.
    • Random Generators—The generator generates new random values.

    ClearSCADA will not execute the expression for any other type of database item referenced by a tag in the expression.

  • Tag Quality Update—This check box is only available when you select the Tag Processed check box. Select this check box if you want ClearSCADA to execute the expression when the quality of a database item referenced by a tag in the expression is updated. Examples of triggers that might cause a quality update are: a user places a database item in or out of service, a user makes changes to the configuration of a database item or an outstation changes state.
• Interval—If you selected the Periodic check box in Trigger Conditions, specify how often (in minutes) ClearSCADA should execute the calculation expression. For example, if you set the Interval to 5M, ClearSCADA will execute the calculation every five minutes. Enter the required interval in the OPC Time Format. You can enter the value directly in the field, or use the Interval window (accessed via the field's browse button) to specify the required value.
• Offset—If you selected the Periodic check box in Trigger Conditions, specify when ClearSCADA should first execute the calculation expression. Enter the required offset in the OPC Relative Time Format. You can enter the value directly in the field, or use the Offset window (accessed via the field's browse button) to specify the required value.
• Time Zone—If you selected the Periodic check box in Trigger Conditions, specify the time zone that ClearSCADA should use when it periodically executes the calculation expression. For example, a daily execution using Local Time with Daylight Saving Time will usually occur every 24 hours. However, around the time of the Daylight Saving Time transition, it will be 23 or 25 hours. Select a combo box option.
